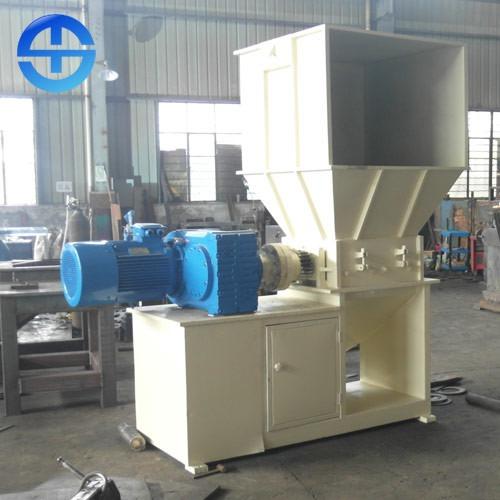

Industrial 1500kg/H Dual Shaft Shear Shredder 26 Pieces Blade
Introduction of double shaft shredder
Double shaft shredder is also known as shear shredder, referred to as shredder. According to the actual situation in China, we will improve, develop and launch a series of dual shaft shredders with mature technology and advanced design to provide reliable equipment for crushing and volume reduction treatment in the early stage of waste recycling in the world.
The dual shaft shredder is driven by two shafts independently, so that the materials are pressed correspondingly during production, and the automatic feeding function is achieved. The unique cutter shaft structure and four angle rotary cutter will not entangle the shaft or jam the equipment in the production process of low speed and high torque, thus improving the production efficiency. The equipment is suitable for the crushing of various materials with high toughness and viscosity. It has many advantages in production, environmental protection and recycling.
Technical data of double shaft shredder
| Main body | Model | SSJ-800 |
| Body | It adopts split type for easy disassembly and assembly, welded by Q235 steel plate. |
| Dimension | 3000*1300*1850mm |
| Power | 2*22kw |
| Reducer | 2*ZQ500 |
| Reducer speed ratio | 48.57 |
| Frame | 120*120 square tube welded |
| Blade | Quantity | 26 pieces |
| Cutter head material | Alloy |
| Cutter head hardness range | 53-58 |
| Cutter head diameter | 260mm |
| Cutter head thickness | 30mm |
| Blade type | The outer tooth adopts small hook angle outer triangular tooth shape, and the inner hole is hexagonal |
| No. of cutter head teeth | Customized according to customer requirements |
| Shaft | Spindle form | Hexagonal shaft |
| Shaft diameter | 130mm |
| Spacer | Quantity | 26 pieces |
| Capacity | 1500kg/h |
Features of double shaft shredder
1: The heavy moving knife has high crushing power. The knives are cast with alloy steel, which is firm and has long service life.
2: The frame plate is thick, can resist high torque and is very strong.
3: Microcomputer (PC) automatic control is adopted, with start, stop, reverse and overload automatic reverse control functions.
4: The equipment has the characteristics of low speed, high torque, low noise and dust, which can meet the environmental protection standard.
5: Easy adjustment, low maintenance cost, economy and durability.
6: The thickness of the tool and the number of jaws can be changed according to different materials.
Working principle of double shaft shredder
After entering the machine, the material is cut, torn and squeezed by the double shaft shredder to reduce the size of the material. The material is forced out of the machine after being split, broken and crushed to a size lower than the set size due to the bite and shear pull of the teeth made of the high hardness and wear-resistant materials that rotate alternately. In the process of shredding, if hard to break materials are encountered, they will be automatically reversed under the action of PLC automatic control system, and they will be reversed several times until the materials are broken and discharged. Nowadays, the double shaft shredder has been widely used for shredding waste plastics, waste rubber, wood and other large volume wastes.
