Automatic Aluminum Recycling Equipment Air Conditioning Radiator Crush Separator 100% Separate Rate

Place of Origin : Henan, China (Mainland)

Brand Name : TMS

Model Number : TMS-017

Supply Ability : 50 Set/Sets per Month aluminum radiator recycling machine

Packaging Details : aluminum radiator recycling machine is packed by ply wooden case which meet export standard or Full container for large quantity.

MOQ : 1 Set/Sets

Price : negotiable

Certification : CO, ISO

Payment Terms : L/C, T/T, Western Union

Name : copper radiator recycling machine

Power : 3 kw+4 kw

Capacity : 2000-3000 kg/day

Dimension : 1800*800*1200 mm

Weight : 650 kg

Function : separate copper and aluminum

Voltage : 380v/50HZ(as Customers' Request )

After-sales Service Provided : Engineers available to service machinery overseas

Contact Now

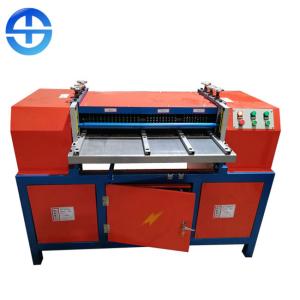

Automatic 100% separate rate copper radiator recycling machine

Details of Radiator recycling machine

Copper radiator recycling machine is designed to strip and separate the scrap radiator for recycling copper and aluminum with high efficiency and stable performance. There are three kinds of blade center distance: 19mm, 21mm and 25mm; that is to say it can strip the radiator whose copper tube center distance is 19mm, 21mm or 25mm

Before processed, the radiators shall be cut with a band saw into pieces of certain width. It can separate one layer or two layers radiators. When radiators are more than two layers, it will be cut into one layer or two layers by band saw machine.

Technical Parameters

Model	Dimension	Capacity	Power	Weight	Motor
TMS-017	18008001200 mm	2000-3000 kg/day	3+4 kw	650kg	customised

Packaging & Shipping

Copper radiator recycling machine is packed by export standard ply wooden case. It is solidly and can not broken during transportation.

Our Services

1. We provide good after-sale service. If spare part is broken not for man-made reason, we will send new one to you free.

2. We also can send our engineer to your place to guide you and your worker to operate this machine.

3. Extra blades will be sent to you free when deliver this machine.
