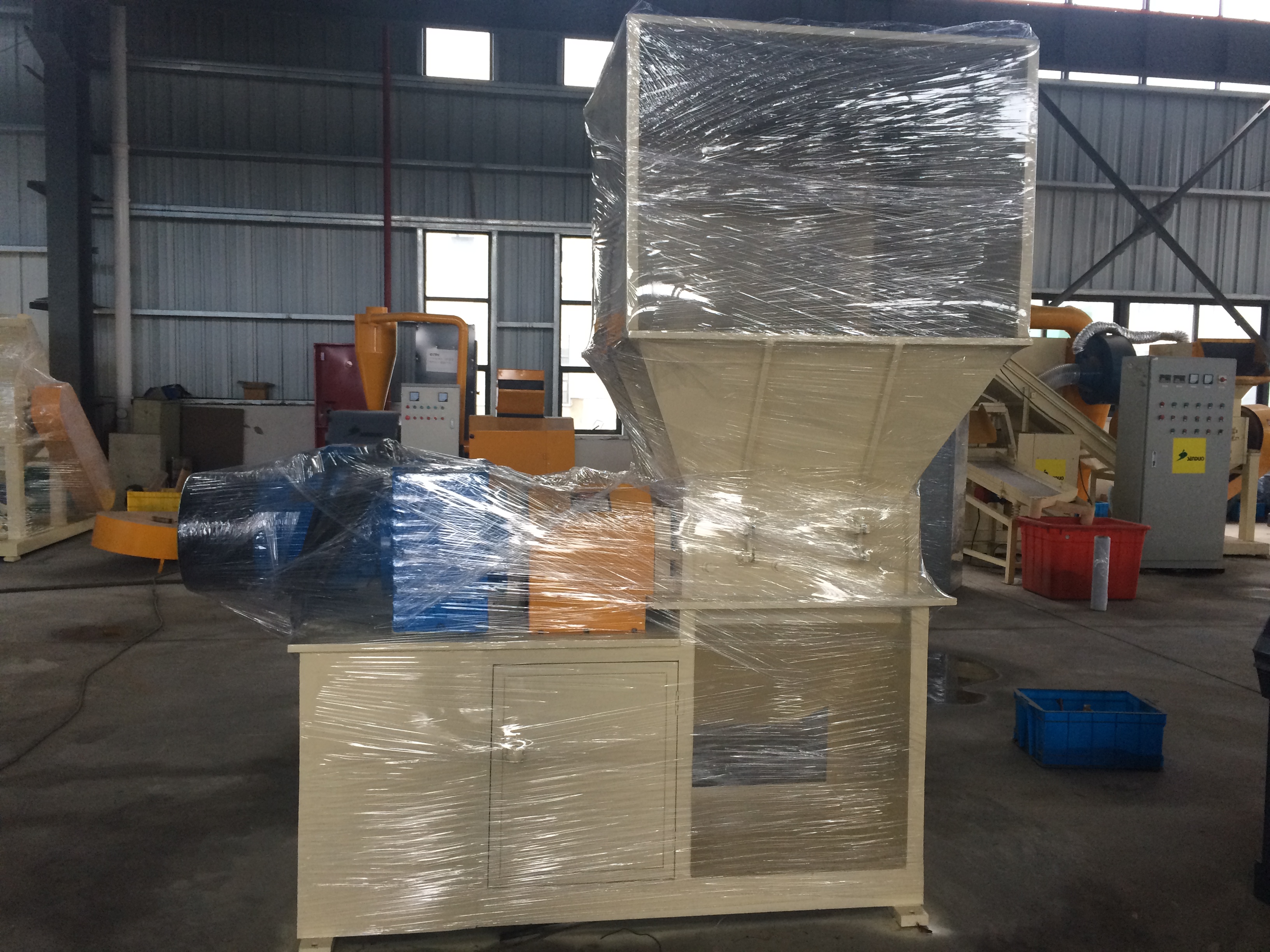

Dual shaft copper wire shredder can meet the requirements of waste recycling in various industries, and is suitable for shredding thicker and refractory materials, such as electronic waste, plastics, metals, wood, waste rubber, packaging barrels, pallets, etc. There are many kinds of recyclable materials. The torn materials can be directly recycled or further refined according to demand. It is suitable for industrial waste recycling, medical treatment recycling, electronic manufacturing, pallet manufacturing, wood processing, domestic waste recycling, plastic recycling, tire recycling, paper making and other industries. This series of double shaft crusher has the characteristics of low speed, high torque and low noise. It adopts PLC control system and can be automatically controlled. It has the functions of starting, stopping, reversing and overloading automatic reversing control.
Machine Advantage
1. This machine can shred large block, basket, pipe, board, wood, tire and large roll film which are difficult to crush by single shredder.
2. Extra thick sheet metal precision processing composite structure frame, large angle hexagonal column strong rotation axis, large caliber and strong input hopper, so you can safely put into large raw materials;
3. In the thickness, shape, arrangement and other aspects of the design and processing of a unique rotary knife, strong shearing force, sharp edge, can be highly efficient crushing;
4. PLC control, when the handling material is too large, it has the function of positive and negative operation and shutdown to protect the body, and the safety measures are absolutely safe.
5. Low-speed operation, low noise, less dust;
6. The blade is made of special alloy steel and is durable.
Technical parameters
| Model | Power (kw) | Capacity (T/H) | Speed (r/min) | Dimension (mm) | Weight (kg) |
| TMS-500 | 22 | 1.5-2 | 20 | 1900*1100*2500 | 3500 |
